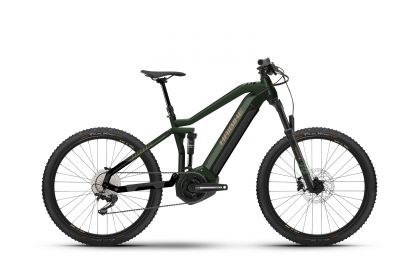

Haibike AllTrail 4 - 27.5

AllTrail 4 - 27.5

EXPRESS SHIPPING
MONEY BACK WARRANTY
DEDICATED CUSTOMER SERVICE
haibike logo

AllTrail 4 - 27.5

€3,999.00 €3,590.00
Availability:
In stock
Only %1 left

Specifications

Electric System

Motor Yamaha, PW-ST System
Motor Brand Yamaha
Motor Type Central
Motor Power 250 Wh, 70 Nm
Motor Support Limit 25 km/h
Battery Yamaha, InTube
Battery Capacity 630 Wh
Display Yamaha, Side Switch, 1.7'' LCD, 7 functions

Frame

Frame Haibike, FullSeven Yamaha i630
Frame Material Aluminium 6061

Shocks

Fork SR Suntour, XCR34 COIL LO, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8'' - 1 1/2'' tapered, 15 x 110mm thru-axle Boost
Rear Shock SR Suntour, Edge LO-R8, Air, Trunnion Mount

Gears

Rear Derailleur Shimano, Deore M5100
Shifter Shimano, Deore M5100, Trigger switch
Bottom bracket integrated in the motor
Crankset Haibike Components, The Crank +, Aluminium / Steel, 38 teeth
Cassette Shimano, M5100, 11 - 51 teeth
Chain KMC, X11e

Brakes

Brakes Shimano, MT410, Hydraulic disc brakes
Brake handle Shimano, MT401, Aluminium
Discs Shimano, RT30-M, 180 mm

Wheels

Wheel 27.5
Rims Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium /
Tires Continental, Trail King, 65-584, 27.5 x 2.6 inch /
Spokes Sapim, Leader
Front hub Shimano, MT400-B, Centerlock
Rear hub Shimano, MT400-B, Centerlock

Handlebar and Saddle

Stem Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees
Handlebar Haibike Components, TheBar ++, 780 mm
Headset Feimin, A-Head Tapered, Ball bearing
Grips Haibike, MTB grips
Saddle Selle Bassano, Reko R2 E-Sport
Seatpost Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm / Internal hexagon, 34.9 mm

Accessories

Pedals Freeridepedal, Aluminium, with Reflector

Dimensions and Weights

Maximum load 120.0 kg
