R.X735 Ultra

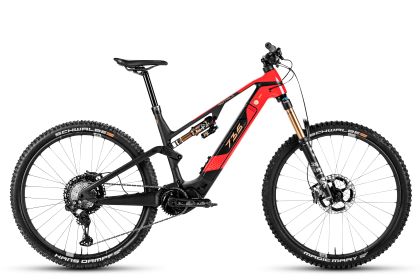

Rotwild R.X735 Ultra
The Ultra is also equipped with the Shimano XT Di2 shifting group with 12-speed transmission in the rear derailleur, which with the materials used, titanium and Carbon, represents an optimal symbiosis of weight and finish. The Shimano XTR 4-piston disc brakes with Fin Pad pads and 203 mm Ice Tex brake discs ensure optimum braking distance and safety in almost all riding conditions.
HighLights:
- Frame: Full Carbon made from high modulus Carbon fibres, handmade
- Fork: 150 mm travel / 110x15 mm / 44 mm offset
- Shock: 144 mm travel / 210x52.5 mm
- Tire (front): 29x2.6 (755x65)
- Tire (rear): 29x2.6 (755x65)
- Motor: Shimano EP801 / 2 profiles / up to 85 Nm torque
- Battery: IPU735 / 720 Wh / 3.6 kg / Carbon / 4.5 A charger
- Headset with Blocklock
New linkage construction
The characteristic damper linkage of the R.X735 is partly made of Carbon in high-modulus fiber and a weight-optimized aluminum yoke.
Rotwild IPU735
The target group-specific energy storage of our Aggressive Series with a battery capacity of 720 Wh features high-performance cell technology (type 21700/5.0 Ah), a weight-optimized, handmade Carbon housing with a low-positioned weight of 3.6 kg.
![Quick Release [IPU735]](https://www.bikelec.com/media/highlights/rotwild/rotwild-rx735-pro-rx735f22p-mood-6294.jpg)
Quick Release [IPU735]
The battery of the IPU735 can be unlocked in seconds at the push of a button and easily removed. To prevent theft, the button can be blocked by means of a supplementary screw.
Shimano EP8
Maximum acceleration and efficient pedaling with natural driving feel guarantees the Shimano Motor with just under 2,500 g, 85 Nm, low pedaling resistance, high motor efficiency at low noise levels and seamless fade-out / fade-in at the support limit. In addition, the support mode can be configured via three different maps.
Geometry
Credit Card
Bank Transfer
Paypal
(+34) 987 790 779
Bikelec LiveChat
WhatsAppSpecifications
Electric System |
|
|---|---|
| Motor | Shimano EP801 |
| Motor Type | Central |
| Battery | IPU735 QR Carbon |
| Display | Shimano EM800 |
Frame |
|
| Frame | High Modulus Carbon |
Shocks |
|
| Fork | Fox 36 Float Factory Kashima |
| Rear Shock | Fox Float X Factory Kashima |
Gears |
|
| Derailleur | Shimano XT Di2 8150 SGS Hyperglide+ |
| Shifter | Shimano XT Di2 8150 |
| Crankset | e*thirteen Direct Mount Chainring \ e*thirteen Race Carbon |
| Cassette | Shimano XTR 9100 |
| Chain | Shimano HG 7100 |
Brakes |
|
|---|---|
| Brakes | Shimano XTR 9120 |
| Discs | Shimano RT900/910 |
Wheels |
|
| Wheel | 29'' |
| Rims | Crankbrothers Synthesis Enduro I9 |
| Tires | Schwalbe Magic Mary / Hans Dampf |
Handlebar and Saddle |
|
| Stem | e*thirteen Plus |
| Handlebar | e*thirteen Race Carbon |
| Headset | Acros RW735 1.5 Headset |
| Grips | Ergon GD10 |
| Saddle | Ergon SM30 Pro / Ergon SM Pro |
| Seatpost | Eightpins NGS 2 |
