R.X735 Core

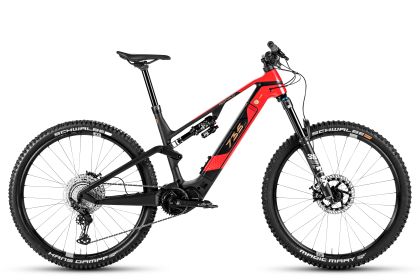

Rotwild R.X735 Core
As a true Rotwild, the "735" impresses with a flat and visually very appealing frame design. All cables and electric wires are routed in the chassis and do not interfere with freedom of movement. The Integrated Power Unit (IPU) with battery and motor blends harmoniously into the Carbon frame made of high-modulus fibre. Despite the larger battery, the R.X735 Core in size L only weighs around 21 kilos.
HighLights:
- Frame: Full Carbon made from high modulus Carbon fibres, handmade
- Fork: 150 mm travel / 110x15 mm / 44 mm offset
- Shock: 144 mm travel / 210x52.5 mm
- Tire (front): 29x2.6 (755x65)
- Tire (rear): 29x2.6 (755x65)
- Motor: Shimano EP801 / 2 profiles / up to 85 Nm torque
- Battery: IPU735 / 720 Wh / 3.6 kg / Carbon / 4.5 A charger
- Headset with Blocklock
High Modulus Carbon
Handmade full Carbon frame made of high modulus fibre with optimised Carbon layup offers higher stiffness values at absolutely optimised weight. Linkage and shock yoke are also made entirely of Carbon.Precise shifting by avoiding tight radii, optimal protection and a tidy look guarantee the cables fully integrated through the cable shaft in the down tube and the motor housing.
Rotwild IPU735
The target group-specific energy storage of our Aggressive Series with a battery capacity of 720 Wh features high-performance cell technology (type 21700/5.0 Ah), a weight-optimized, handmade Carbon housing with a low-positioned weight of 3.6 kg.
![Quick Release [IPU735]](https://www.bikelec.com/media/highlights/rotwild/rotwild-rx735-core-rx735f22c-mood-6124.jpg)
Quick Release [IPU735]
The battery of the IPU735 can be unlocked in seconds at the push of a button and easily removed. To prevent theft, the button can be blocked by means of a supplementary screw.
Max Dropper Post
The best possible seating position uphill and high freedom of movement downhill by maximum adjustment stroke over all sizes offers the fast, very smooth, adapted to the frame, fully integrated and fixed seatpost.
Geometry
Credit Card
Bank Transfer
Paypal
(+34) 987 790 779
Bikelec LiveChat
WhatsAppSpecifications
Electric System |
|
|---|---|
| Motor | Shimano EP801 |
| Motor Type | Central |
| Battery | IPU735 QR Carbon |
| Display | Shimano EM800 |
Frame |
|
| Frame | High Modulus Carbon |
Shocks |
|
| Fork | Fox 36 Float Performance |
| Rear Shock | Fox Float X Performance |
Gears |
|
| Derailleur | Shimano XT 8100 |
| Shifter | Shimano XT |
| Crankset | e*thirteen Direct Mount Chainring \ e*thirteen Plus |
| Cassette | Shimano CS 6100 |
| Chain | Shimano HG 7100 |
Brakes |
|
|---|---|
| Brakes | Magura MT5 HC-W |
| Discs | Magura MDR-P Sensor |
Wheels |
|
| Wheel | 29'' |
| Rims | Crankbrothers Synthesis Enduro |
| Tires | Schwalbe Magic Mary / Hans Dampf |
Handlebar and Saddle |
|
| Stem | e*thirteen Plus |
| Handlebar | e*thirteen Plus |
| Headset | Acros RW735 1.5 Headset |
| Grips | Ergon GD10 Slim |
| Saddle | Ergon SM Sport |
| Seatpost | Eightpins H01 |
