AllMtn 6

AllMtn 6

haibike logo

AllMtn 6

Out of stock
Only 2 left


Electric System

Motor Yamaha, PW-X2
Motor Type Central
Motor Power 250W, 80 Nm
Motor Support Limit 25 km/h
Battery Yamaha
Battery Type Li-Ion
Battery Capacity 600 Wh
Display Yamaha, Side Switch, 1.7" LCD, 7 functions


Colors Gris / Verde
Frame Type Haibike, XDURO AllMtn i600
Frame Material Carbon


Fork FOX, 38 Performance, Air/oil, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock FOX, Float DPS Performance EVOL, Air, 65.0 mm, 25 x 8mm 25 x 8mm


Gears 12 Speed
Derailleur Sram, GX Eagle
Shifter Sram, GX Eagle, Trigger switch, 12 Speed
Bottom bracket Integrated in the motor
Crankset Biela: Haibike Components, The Crank ++, Aluminium<br>Plato: Sram, X-Sync 2 Eagle, 38 teeth
Cassette Sram, Eagle PG1230, 11 - 50 teeth
Chain Sram, SX Eagle


Brakes Rear: Magura, MT5, 203 mm, 4-piston disc brake<br>Front: Magura, MT5, 203 mm, 4-piston disc brake
Brake handle Magura, MT5 HC-lever, Aluminium
Discs Rear: Magura, MDR-C 203 / Front: Magura, MDR-C 203


Rims Rear: Rodi, Tryp 35, Aluminium, with eyelets, hollow rim<br>Front: Mavic, E-XM 430
Tires Rear: Maxxis, Minion DHR II, 71-584, 27.5" x 2.8"<br>Front: Maxxis, Minion DHF II, 63-622, 29" x 2.5"
Spokes Sapim, Leader, Black
Front hub Haibike Components, The Hub ++ , 6-bolt standard
Rear hub Haibike Components, TheHub ++ Steckachse 12x148, 6-bolt standard

Handlebar and Saddle

Stem Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar Haibike Components, TheBar +++ Gravity , 780 mm
Headset Acros, BlockLock , Aluminium
Grips Haibike, MTB grips
Saddle Selle Royal Vivo 1216HRN
Seatpost Haibike Components, Dropper-Post Remote 31.6, Aluminium, Telescope


Pedals Freeridepedal , Aluminium, with Reflector,

Dimensions and Weights

Maximum load 120.0 kg

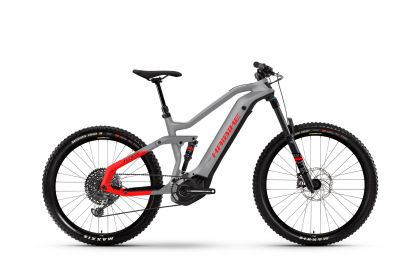

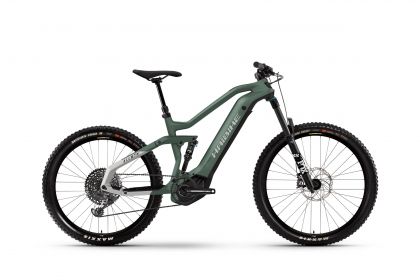

Haibike All Mountain 6.0 2021

DESCRIPTION All Mountain 6

The Xduro All Mountain 6.0, as its name suggests, is an excellent high-end eMTB, ready to make us enjoy complicated off-road trips with great power, good stability, and the greatest possible comfort. High quality components and technological level are combined with an extremely resistant XDURO AllMtn i600 carbon frame with excellent handling characteristics and characterized by the double bending of its carbon tubes.

Well-conceived for all-mountain riding, this ebike performs well on more aggressive descents and more Enduro-like descents, while at the same time it performs excellently on climbs. One of the most important elements to achieve this goal is the full suspension, with components by FOX. The FOX front suspension, 38 Performance, Air/oil, with 160 mm of travel, is equipped with a proven and reliable shock motion control unit. An easy-access selector on the fork crown allows us to adjust the low-speed compression at any time. What's more: the damping rebound can be adjusted to the terrain conditions and the rider's preferences. By adjusting the manual damping control, compression and rebound are adapted to achieve a calmer ride according to the actual characteristics of each individual ride path. For when road conditions do not require the use of the fork, it can be easily locked out.

The FOX rear shock, Float DPS Performance EVOL, Air makes our ride more comfortable and smoother, floating through deep bumps and turning extreme trails into accessible paths. Progressivity is more controlled from mid-travel, a sensitivity that ensures good initial absorption but no bottoming out at the end. Its chassis is small, yet retains the durability and adjustability needed for tough electric mountain biking or epic cross country.

The key of this shock absorber is the EVOL (Extra Volume), used to name the new negative air chamber of greater volume, which ensures a smoother and faster initial actuation, avoiding the hard reaction during the first impact, usual in other similar shock absorbers. On the fly we can regulate its performance according to the road conditions using three preset settings: Open/Medium/Firm. to regulate its performance according to our body characteristics.

Another key to the comfort on board the All Mountain 6.0 is the smooth and fast Dropper-Post Remote 31.6All Mountain telescopic seatpost, with travel controlled from a handlebar-mounted lever. It's tough and shock-absorbing.

Support, when the going gets tough on the trail, is provided by Yamaha's PW-X2 electric system, which with its 250 watts of power and 80 Newton meters of torque offers a natural and responsive feel to those of us looking for the sportier and more powerful aspect of MTB, increasing our possibilities. It is the most powerful Yamaha engine on the market and one of the most efficient.

A 600 Watt-hour battery powers the system with extraordinary efficiency through the Battery Management System (BMS). The BMS also protects the battery against overcharging and other malfunctioning conditions. It weighs only 4 kilograms, which, combined with its location on the down tube, significantly improves the bike's maneuverability. In addition, it enjoys the advantages of lithium batteries: a low self-discharge rate and no memory effect, and can be partially recharged at any time without impacting battery life.

The Intu Yamaha, Side Switch, 1.7" LCD 7-function on-board computer has two main functions: to allow control of the electrical system parameters, and to display trip information, including distance, time and speed. The control pad allows us full access to the computer and to operate the functions remotely, keeping our hands on the handlebars to aid riding safety. The display has a layout that allows us to be informed of all functions at a glance.

Riding on the Maxxis Minion DHF II 63-622 tires, 27.5" at the rear and 29" diameter and 2.5" wide at the front, we ride fast and grippy on different types of terrain. They have high durability on trial rides and their large, rounded and flexible casing offers an all-round performance in changing all-mountain conditions. In addition, the tires on this ebike are in the 63-622 size category, whose additional air pressure-volume and larger ground contact surface provide grip and comfort while riding. The sturdy Mavic E-XM 430 rims will stand up to the rough conditions of the Enduro. Excellent shoes for one of the best Haibike mountain models for 2021.

The shifting system components are Sram, type Sram, GX Eagle, which provides 12 speeds. It offers smooth and dynamic MTB performance, and invites you to ride wherever you want to ensure you maintain pedaling efficiency. It has great durability and optimum performance; its technology improves chain retention even on the most unstable terrain. Switching is fast and reliable and executed with minimal effort. In a word: robustness and reliability on the most difficult roads.

To ride the All Mountain 6.0 safely and efficiently, the guys at Haibike provide plenty of braking power via hydraulics with components from Germany's Magura. On the front wheel, they are of the four-piston MT5 type, with a massive 203-millimeter diameter disc on both wheels. The levers have a HC design lever, shorter than the lever on previous models, as well as significantly stronger. It is much more pleasant to operate with one or two fingers and can be moved closer to the handlebars. With it we enjoy it while at fingertips we control the bike with short and smooth braking or equally when the need forces hard braking, while in all cases the modulation is such that the limit between braking and locking is palpably wide.
