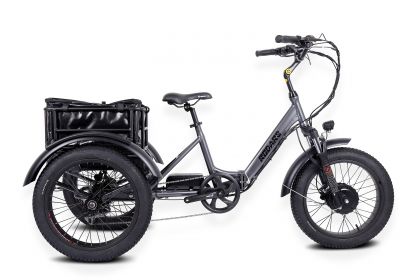

Dune 3.0 (Foldable)
Bafang Motor
Reliable, efficient and powerful. 250W(45Nm) and 500W(80Nm) versions available to provide you the needed assistance for an effortless ride.
Removable Battery
Made from Samsung cells with capacities ranging from 370Wh (36V/10Ah) to 1100Wh (36V/30Ah). Easy to remove or charge in place.
Bafang DP C10 Display
5 levels of pedal assist, Odometer, Trip time and distance, Battery capacity indicator, Walk assistance, High contrast, Automatic back light, USB charge port
Hydraulic Disk Brakes
Simple to maintain and easy to use. Less effort to brake, resulting in shorter stopping distances and a more comfortable ride.
Plus Tyres 3”
Extra stability, comfort and traction. Better able to absorb the vibrations from poorly surfaced roads to provide a smoother ride.
Folding Frame
Convenient storage and transportation. The quick-release folding mechanism makes it possible to take the tricycle from storage to the road in less than a minute.
Differential
Allows the rear wheels to rotate independently when turning your tricycle. Accelerate, corner, and brake more safely and predictably.
Carrier Bag
Easy to remove and to fix back in place, it perfectly fits the rear basket and is very convenient to carry stuff to and from the tricycle.
Credit Card
Bank Transfer
Paypal
(+34) 987 790 779
Bikelec LiveChat
WhatsApp
Specifications
Electric System |
|
|---|---|
| Motor | Bafang |
| Motor Type | Delantero |
| Motor Power | 250W (45Nm) / 500W (80Nm) |
| Motor Support Limit | 25Km/h |
| Battery Type | Li-Ion |
| Battery Capacity | 555Wh (36V/15Ah) / 740Wh (36V/20Ah) / 925Wh (36V/25Ah) / 1110Wh (36V/30Ah) |
| Battery Brand | LG |
| Battery Voltage | 36V |
| Display | Bafang C10 (5 speed) |
| Hand Throttle | Opcional |
Frame |
|
| Frame Material | Aluminio 6061 |
Shocks |
|
| Fork | RST GUIDE 20'' 80mm |
Gears |
|
| Gears | 8 Velocidades |
| Derailleur | Shimano Nexus |
| Shifter | Shimano Revoshift |
| Crankset | 48T |
| Chain | KMC |
Brakes |
|
| Brakes | Tektro HD E350 |
| Brake handle | Tektro E350 |
| Discs | 160 mm \ 160 mm |
Wheels |
|
|---|---|
| Wheel | 20'' |
| Tires | 20'' x 3.0'' |
| Front hub | Formula |
Handlebar and Saddle |
|
| Handlebar | Cruiser / Offroad |
| Headset | 1''1/8 |
| Grips | PAH-G112-1 22.2*130mm |
| Saddle | VL-6090A NP12 |
| Seatpost | 27.2*300mm |
Accessories |
|
| Front Light | SD-022/36V |
| Rear Light | D-05D w/ brake light & turning light |
| Pedals | F178 BS |
| Mudguards | 20'' |
Dimensions and Weights |
|
| Height | 110 cm |
| Lenght | 184 cm |
| Width | 74 cm |
| Handlebar Height | Min: 100 cm / Max: 110 cm |
| Saddle Height | Min: 76 cm / Max: 92 cm |
| Folded Height | 100 cm. |
| Folded Lenght | 102 cm. |
| Folded Width | 86 cm. |
| Other | Rear Basket: L 48 cm x W 40 cm x H 22 cm |
| Maximum load | 175 kg. |
The manufacturer reserves the right to replace individual parts with components of the same or higher quality.
