Bliss
Bafang Motor
Reliable, efficient and powerful. 250W(45Nm) and 500W(80Nm) versions available to provide you the needed assistance for an effortless ride.
Integrated Battery
Fixed inside the frame with a key lock. Easy to remove or charge in place. Made from Samsung cells with a capacity of 672 Wh (48 V / 14 Ah).
Bafang DP C10 Display
5 levels of pedal assist, Odometer, Trip time and distance, Battery capacity indicator, Walk assistance, High contrast, Automatic back light, USB charge port
Hydraulic Disk Brakes
Simple to maintain and easy to use. Less effort to brake, resulting in shorter stopping distances and a more comfortable ride.
Shimano Acera 8 Speed
Double Servo rear derailleur with smooth, precise shifting performance and wide-range capability. Helps you ride challenging terrain with fewer interruptions.
Fat Tyres 4”
Extra stability, comfort and traction. Better able to absorb the vibrations from poorly surfaced roads to provide a smoother ride.
Folding Frame
Convenient storage and transportation. The quick-release folding mechanism makes it easy to take your bike from storage to the road in less than a minute.
Passenger Seat
Stylish, comfortable long seat with extra padding and rear foot pegs enable you to carry one passenger safely.
Specifications
Electric System |
|
|---|---|
| Motor | Bafang |
| Motor Type | Trasero |
| Motor Power | 48V 250W (45Nm) |
| Battery Type | Li-Ion |
| Battery Capacity | 672Wh (48V/14Ah) |
| Battery Voltage | 48V |
| Display | Bafang DP- C10 |
| Hand Throttle | Opcional |
Frame |
|
| Frame Material | Aluminio 6061 |
Shocks |
|
| Fork | FAT99-TN-20''*28.6*25.4*265 double should fork |
Gears |
|
| Gears | 8 Velocidades |
| Derailleur | Shimano Acera ARDM360SGSL |
| Shifter | Shimano M315 ASLM3158RC |
| Crankset | 48T |
| Cassette | 12-32T |
| Chain | KMC |
Brakes |
|
|---|---|
| Brakes | Tektro Aries / Tektro E350 |
| Brake handle | Tektro Aries / Tektro E350 |
| Discs | 160 mm \ 160 mm |
Wheels |
|
| Wheel | 20'' |
| Tires | 20'' x 4,0'' |
| Front hub | Formula |
Handlebar and Saddle |
|
| Stem | 2/5-25.4*180*90 |
| Handlebar | NR14-22.2*25.4*620mm |
| Headset | 1''1/8 |
| Grips | PAH-G112-1 22.2*130mm |
Accessories |
|
| Front Light | LED |
| Rear Light | YG-WD410 dry battery |
| Pedals | F178 BS |
| Mudguards | Vintage |
| Kickstand | YP-031-20'' |
The manufacturer reserves the right to replace individual parts with components of the same or higher quality.

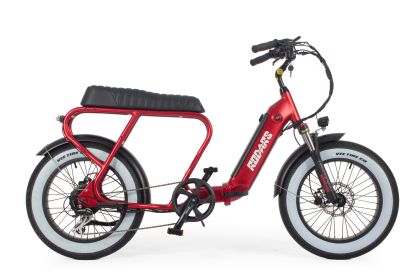

Bliss folding electric bike
The Bliss is a folding electric bike with a personality that is hard to mistake. Its cruiser-inspired design, wide bench-style seat, 20-inch wheels and carefully considered details create an unmistakable look, but behind its distinctive appearance lies a comfortable, compact and highly manoeuvrable bike designed to make every journey enjoyable.
Its step-through frame makes getting on and off considerably easier, while its compact dimensions provide excellent agility around town, on cycle paths and during leisure rides. A different kind of electric bike for riders looking for comfort and practicality without settling for the conventional design of a typical e-bike.
Cruiser design with a personality of its own
On the Bliss, design and functionality go hand in hand. Its long bench-style seat, mounted directly onto the frame, integrates perfectly with the lines of the bike and provides a generous seating area for a relaxed riding position.
Its length also provides enough space to accommodate a passenger by adding the optional rear footrests, extending the possibilities of the bike. In any configuration, the maximum permitted total weight of 120 kg must always be respected, including the weight of the bike itself, rider or riders and any cargo being carried.
The long metal mudguards follow the lines of the wheels and reinforce its distinctive cruiser styling. In addition to adding quality and character to the overall design, they provide excellent protection against splashes during everyday use.
Three tyre styles to make it even more your own
As standard, the Bliss is equipped with striking 20 x 4-inch mixed-terrain tyres with white sidewalls, a choice that enhances its cruiser character while providing an excellent combination of comfort, stability and versatility.
For those looking for a more adventurous appearance, it can be configured with 20 x 4-inch black knobby tyres. If, on the other hand, the bike will mainly be used on asphalt, we also offer the option of fitting 20 x 3-inch black road tyres, which are narrower and particularly well suited to urban riding.
Three different configurations that allow both the appearance and riding characteristics of the Bliss to be adapted to each rider's style and needs.
Compact, manoeuvrable and easy to use
Its 20-inch wheels, compact dimensions and step-through frame geometry make the Bliss particularly easy to handle. Low-speed manoeuvres are simple, it moves easily through urban environments and its compact size makes finding somewhere to store it at the end of the journey much easier.
The front suspension helps absorb irregularities in the terrain and improves riding comfort, particularly on uneven surfaces, cobblestones or compact tracks.
Practical and secure folding
The frame incorporates a folding system that considerably reduces the dimensions of the bike, making storage and transport easier. The mechanism also features a safety button integrated into the lever, which must be pressed to release the folding mechanism and helps prevent accidental opening while riding.
This combination of compact dimensions and a folding frame makes the Bliss an excellent option for anyone with limited storage space or who needs to transport their bike more easily.
Battery integrated into the design
The Bliss features a 672 Wh lithium battery (48 V / 14 Ah), integrated into the upper section of the frame to maintain clean lines and ensure that the battery forms part of the overall design of the bike.
The battery is removable and features a key-operated locking system, allowing it to be easily removed whenever it needs to be charged or stored separately. It can also be charged directly while installed on the bike.
Assembly and after-sales service
The bike is delivered almost fully assembled. If you have any questions, you can consult the comprehensive user manual or contact our customer service team to request the unboxing tutorial video, where you can see just how simple it is to complete the assembly.
Should any issue arise during use or upon receiving the bike, our after-sales team will deal with your needs quickly and efficiently, offering different solutions tailored to each situation.
Experience and confidence
Since 2007, we have been assembling electric bikes and tricycles for thousands of private customers and distributors. We control the entire manufacturing and assembly process, selecting components that have proven to offer outstanding reliability, quality and durability through years of experience. This commitment has enabled us to earn the trust of customers throughout Europe.
48 V Bafang electric system
The Bliss is equipped with a 48 V electric system powered by a 250 W Bafang rear motor. Its position in the rear wheel provides a natural feeling of propulsion and smooth, progressive assistance, making it ideal for both everyday journeys and longer leisure rides.
The 48 V system provides an energetic and efficient response, working together with the 672 Wh battery to offer an excellent balance between performance and range.
Bafang DP C10 display and Walking Mode
From the intuitive Bafang DP C10 display, positioned in the centre of the handlebar, you can control the entire electric system, select the five assistance levels and view information about your journey.
It also features the practical Walking Mode, activated by holding down the “-” button, which allows the bike to move forward at low speed while you walk alongside it. This function is particularly useful on ramps, access areas or whenever it is more convenient to move the Bliss on foot rather than ride it.
Quality transmission and braking
The 8-speed Shimano Acera drivetrain makes it easy to select the most suitable gear for every situation, providing smooth and precise shifting both on urban journeys and longer rides.
The Tektro E350 hydraulic brakes deliver powerful, progressive and easily controlled braking, providing safety and confidence on every journey.
Lighting, turn signals and brake light
The front and rear lights are connected directly to the bike's electrical system, eliminating the need to rely on independent batteries for their operation.
To increase safety and visibility while riding, the Bliss also features a turn signal and brake light system integrated into the rear light. The turn signals are operated using a separate control positioned next to the left-hand grip, allowing you to signal manoeuvres conveniently without taking your hands off the handlebar.
Particularly useful equipment on a bike designed to make everyday journeys as comfortable and practical as possible.
A different bike for enjoying every journey
The Bliss combines the aesthetics of a cruiser bike with the advantages of a compact, folding electric bike. Its step-through frame, wide seat, large-section tyres and comprehensive electric system create a bike that is comfortable and easy to handle, but above all has a personality of its own.
The option to choose between different tyres and add footrests for a passenger also allows its configuration to be adapted to different ways of enjoying the bike, giving each Bliss its own individual character.
Who is the Bliss for?
The Bliss is particularly recommended for anyone looking for a comfortable, compact electric bike with a design that stands apart from the conventional. Its step-through frame makes getting on and off easier, its dimensions improve manoeuvrability and its folding system reduces the space required for storage or transport.
It is an excellent companion for urban journeys, cycle paths, relaxed rides and leisure routes, particularly for riders who appreciate a relaxed riding position and the distinctive character of a cruiser-inspired bike.
If you also want a bike that can be configured to suit your style, choosing between different types of tyres or adding footrests for a passenger, the Bliss offers a combination of design, comfort, versatility and personality that is difficult to find elsewhere.
