|Motor Type||Rear / Central|
|Motor Power||250W (45Nm) / 500W (80Nm) / 250W (80Nm) / 350W (80Nm) / 500W (100Nm)|
|Battery Capacity||385Wh (36V/10,4Ah) / 520Wh (36V/14Ah)|
|Display||LCD Digital 450u (5 speeds) / LCD Colour 850C (9 speeds)|
|Frame Sizes||M / L / XL|
|Frame Material||Aluminium 6061|
|Fork||SR Suntour XCM|
|Rear Shock||XS / Suntour Raidon|
|Gears||Rear Motor - 24 / Central Motor - 8|
|Crankset||Rear Motor - 22-32-42T / Central Motor - 42T|
|Brake handle||Shimano BL-MT200|
|Discs||160 mm \ 180 mm|
|Rims||Aluminium double wall|
|Tires||Kenda 27,5" x 2,3"|
|Spokes||Carbon steel with copper reinforced heads|
Handlebar and Saddle
|Stem||1"1/8 Ahead 31,8mm|
|Handlebar||Truvativ XC-AM Riserbar|
|Pedals||Wellgo Platform plegables|
|Mudguards||Without mudguard / Black flexible PVC|
Dimensions and Weights
|Handlebar Height||103 cm|
|Folded Height||103 cm|
|Folded Lenght||110 cm|
|Folded Width||Min: 40 cm / Max: 62,5 cm|
|Bike Weight||18.6 kg|
|Battery Weight||3,4 kg|
|Total Weight||22 kg|

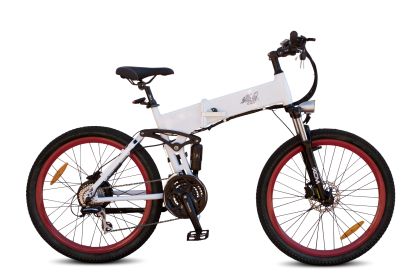

Raptor Folding Electric Bicycle Double Suspension
The Raptor model is a folding electric bike with double suspension that stands out for its unequaled versatility, equipped with a powerful wheel or central motor and the Samsung battery protected and hidden inside the frame. Enjoying the benefits of a folding electric bike together with the virtues of the front and rear suspension, hydraulic brakes, and the high-end gears they offer, we obtain an excellent machine prepared for mountain routes or road tours, very versatile and with superior performance.
The 36 volts x 250 watts and 45Nm 8FUN motor is powered by a powerful Samsung battery available in different capacities. Also available with 36 volts x 500w 8FUN rear motor of 80Nm or 250w and 80Nm or 500w and 100 Nm of power.
The entire electrical system is managed by the intelligent LCD digital display, which is delivered fully configured and with a complete manual for further configuration if necessary, among the most relevant functions are the 5 levels of assistance, configurable to 9 or 3 levels, the management of the lights, route data information, legal accelerator up to 6km/h and the possibility of limiting the maximum speed.
The raptor has robust and lightweight 6061 aluminum frames, with a 5-year warranty, the frame has been developed with the best geometry for the user, whether for off-road trails or urban roads. A dominant position with the back leaning on the handlebars, allows us to tackle steep climbs over rough terrain with loose elements or steep descents in uneven areas, always maintaining control of the bike. When touring in an urban environment, it behaves like a trekking model, allowing us to pedal with strength without forcing the position, while the comfort of the set and the double suspension allows us to cover long distances.
The aluminum frame folds up in the blink of an eye, but thanks to its clever protection system it can never be opened when you don't want it to be. When you fold the frame up slightly, we leave the battery in the light, protected in the part closest to the user, to keep the extra weight of the battery close to our axle, thus avoiding ballasting this small load away from our control zone.
For a choice between off-road and on-road, the Raptor is fitted with chunky 27.5" x 2.1" wide Kendal wheels on sturdy double-wall aluminum rims.
Also available as an option are magnesium rims, which are made up of 6 rigid magnesium arms that will prevent future maintenance as they will always maintain their original position.
Within the Raptor's mounting options, it is possible to fit a 29" front wheel to take advantage of the benefits that a larger wheel offers on different types of terrain.
The standard fitment uses SR Suntour XCM front and XS rear suspension, but if you want to get the most out of your folding raptor on tricky routes, whether in the mountains or on the open road, you might consider choosing the Suntour lock-out rear suspension, which provides greater control on rough terrain thanks to its high stiffness and a range of usability options. If you want an even better feeling in the mountains, RockShox's front and rear suspension are available.
Shimano MT200 hydraulic brakes or Shimano M375 mechanical brakes can be chosen indistinctly deciding for one or the other based on the needs of users, a hydraulic brake always contributes with more braking power, better feel and more precise, very useful for unpaved roads, a mechanical brake instead has cut the signal and can be more conducive to the city. The SHIMANO ACERA 24-speed gear system will provide us with great sensations while we move whatever the type of landscape.
The front and rear LED lights, together with reflectors along the rim, will help us to signal our position and be as visible as possible to avoid any inconvenience.
The Raptor can be fitted with mudguards, Seatpost suspension, an extra light on the handlebars for night riding, and a rear rack for carrying small loads. Raptor, a multi-purpose folding electric bike.
